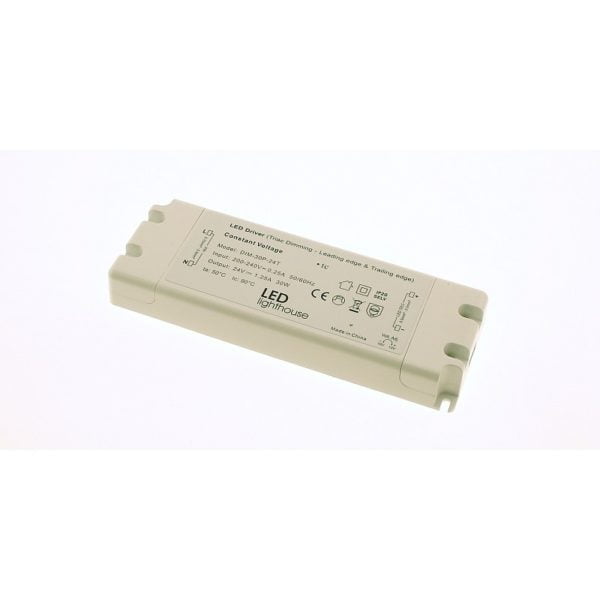

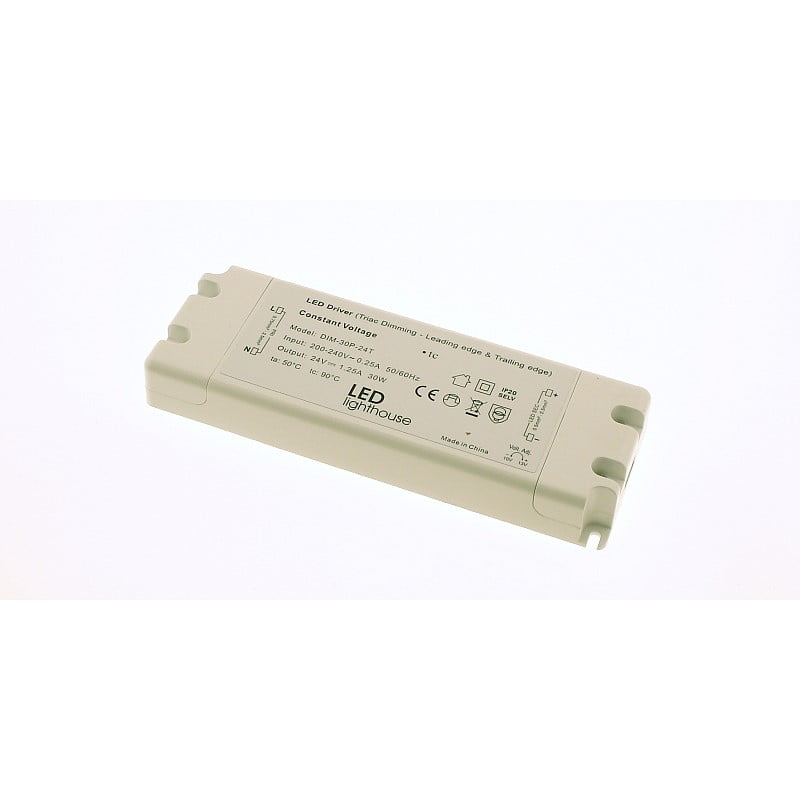

Mains to 24V LED Strip Dimmable Driver 30W

Mains to 24V LED Strip Dimmable Driver 30W

£46.14
£38.45excluding VAT

SKU: ELED-30P-24T Categories: ,

Description

Allows 24V LED lights to be dimmed using a Mains Voltage Dimmer Switch. Designed for use with existing 240V dimmable circuit installations.

We advise using this dimmer to control between 1W and 30W of our 24V LED Strip. Our LED Strip Dimmer Switch has been tested and works perfectly with this driver.

This driver is ‘Leading Edge’ and ‘Trailing Edge’ dimmable; it should be compatible with most dimmer switches on the market

Dimming Compatibility Triac (Leading Edge) and Trailing Edge
Protections Short Circuit, Overload, Over Current
Load Range 1-30W
Waterproof No
Efficiency 79% Efficiency
Power Factor 0.97
Isolation Fully Isolated
Input Voltage 200-240V
Output Voltage PWM 24V
Dimensions 155 x 54 x 20mm
Warranty 12 Months

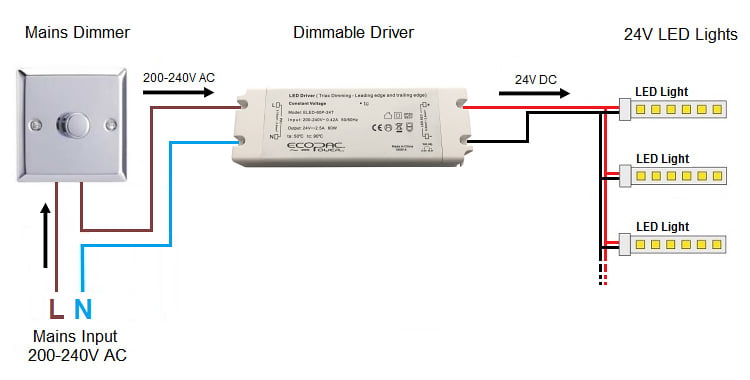

Dimmable LED Driver Circuit Diagram

Additional information

Weight 0.3 kg
