Description

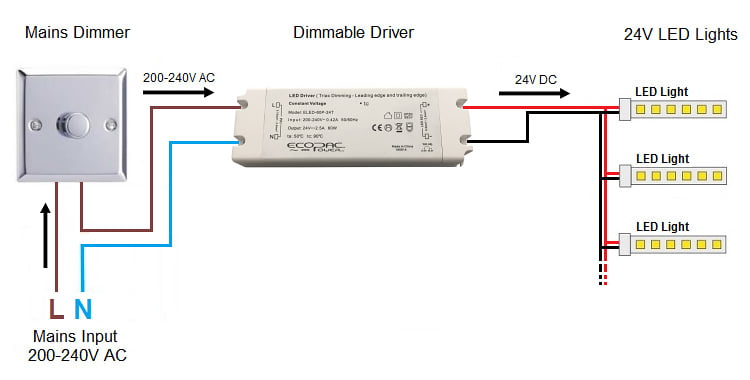

Allows 24V LED lights to be dimmed using a Mains Voltage Dimmer Switch. Designed for use with existing 240V dimmable circuit installations.
We advise using this dimmer to control between 30W and 60W of our 24V LED Strip. Our LED Strip Dimmer Switch has been tested and works perfectly with this driver.
This driver is ‘Leading Edge’ and ‘Trailing Edge’ dimmable; it should be compatible with most dimmer switches on the market
| Dimming Compatibility | Triac (Leading Edge) and Trailing Edge |
|---|---|
| Protections | Short Circuit, Overload, Over Current |
| Load Range | 30-60W |
| Waterproof | No |
| Efficiency | 85% Efficiency |
| Power Factor | 0.98 |
| Isolation | Fully Isolated |
| Input Voltage | 200-240V |
| Output Voltage | PWM 24V |
| Dimensions | 178 x 61 x 24mm |
| Warranty | 12 Months |
Mandeep Dhillon (verified owner) –
Great product, easy to fit and well built. Works with LightwaveRF connect series Dimmer switch (dimmable LED Strip also bought here).
Christopher T. (verified owner) –
Purchased to use with a LightwaveRF 4 way dimmer. Works OK but every now and again doesn’t always switch on first time. Going to explore if this is to do with the dimming range on the Lightwave unit though.
