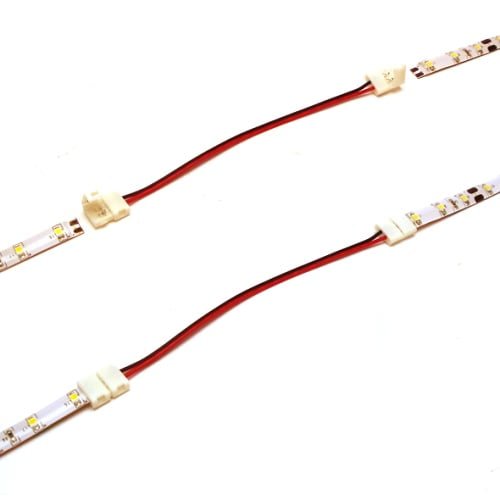

Flexible LED Strip to Strip Connector 8mm 2 Pin

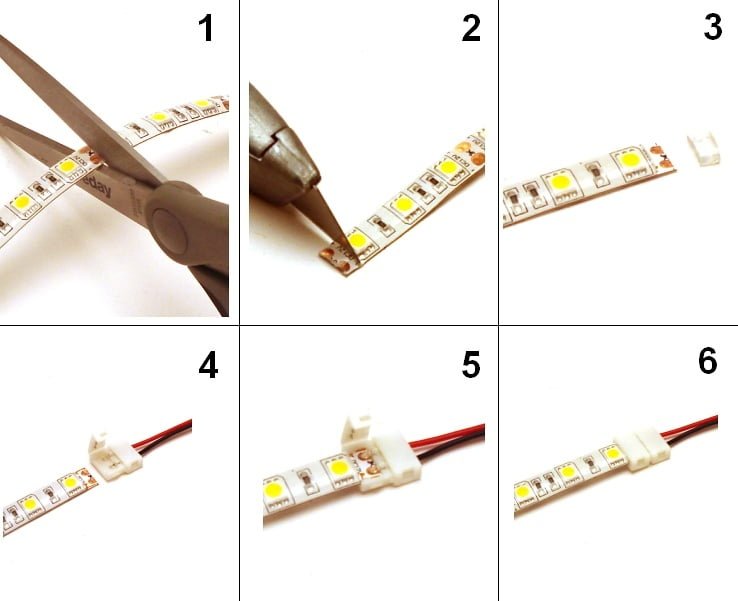

This connector is used to connect two lengths of 8mm wide single colour LED strip together. The LED strip light must be 8mm wide to use this connector. Before this connector can be used, gel waterproof coatings must be removed 7mm from the end of both LED strips. The LED strip can then slide inside the connector, passing under the metal arms. Ensure the arms are pushing down onto the copper contacts of the LED Strip. Then close the connector cover, ensuring the teeth clamp directly onto the circuit board of the LED strip not the gel coating.

This connector can be used with our Nano Tech LED Strip providing the thin waterproof coating is removed from the top of the copper terminals first. This can be done using a sharp blade or fine sandpaper.

This connector is approximately 150mm long.
