Additional information
| Weight | 0.01 kg |
|---|

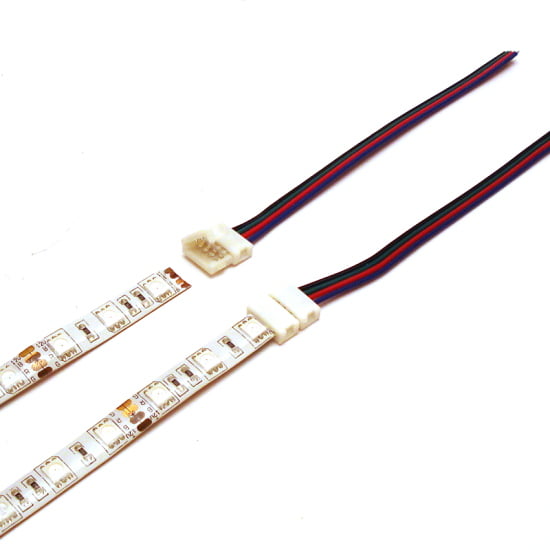

LED Strip Power Lead Connector RGB 10mm 4 Pin

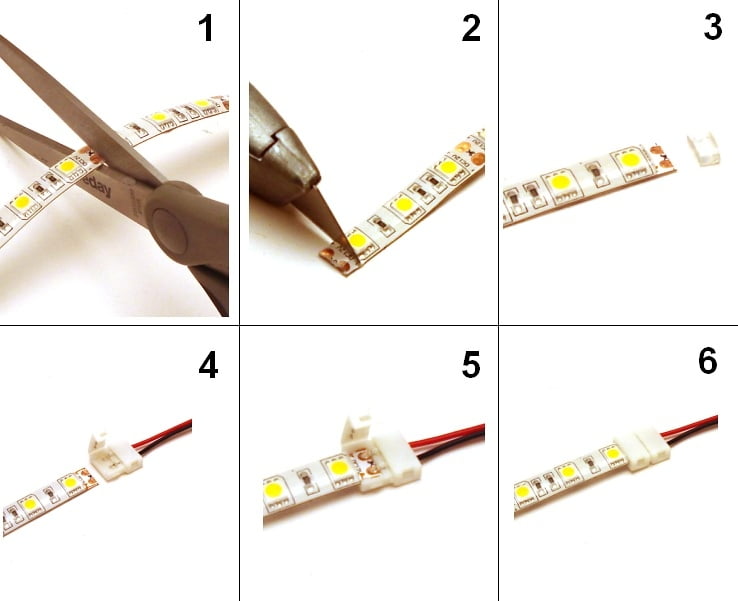

This connector is designed to clip onto the end of our RGB colour changing LED strip to allow it to connect with a colour controller. The LED strip light must be 10mm wide to use this connector. Before this connector can be used, gel waterproof coatings must be removed 7mm from the end of the LED strip. The LED strip can then slide inside the connector, passing under the metal arms. Ensure the arms are pushing down onto the copper contacts of the LED Strip. Then close the connector cover, ensuring the teeth clamp directly onto the circuit board of the LED strip not the gel coating.
This connector can be used with our Nano Tech LED Strip providing the thin waterproof coating is removed from the top of the copper terminals first. This can be done using a sharp blade or fine sandpaper.
This connector is approximately 150mm long.
This connector is only suitable for powering up to 5m of LED strip. To power longer lengths a soldered connection is required.
£2.38
£1.98excluding VAT
2 reviews for LED Strip Power Lead Connector RGB 10mm 4 Pin
Only logged in customers who have purchased this product may leave a review.
Lee Savigar –
I have bought this item to make the led strip easier to install. It does look a little cheep but you won’t be able to see so it does not matter
Graham Farr (verified owner) –
worked first time when clipped to LED tape ……….
