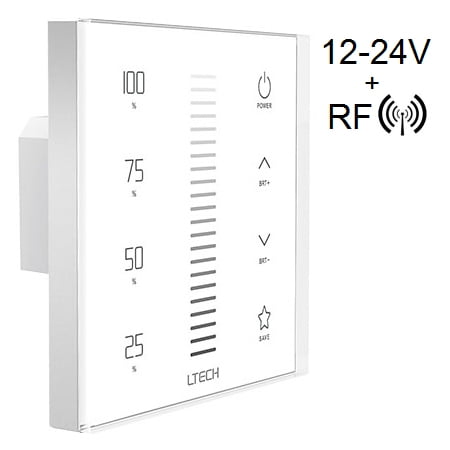

Wired Touch Panel LED Strip Dimmer, 12V – 24V

Dim white or single colour LEDs by wire

Same size as a standard UK wall switch. Compatible with standard 35mm deep plastic back boxes, back box is not included.

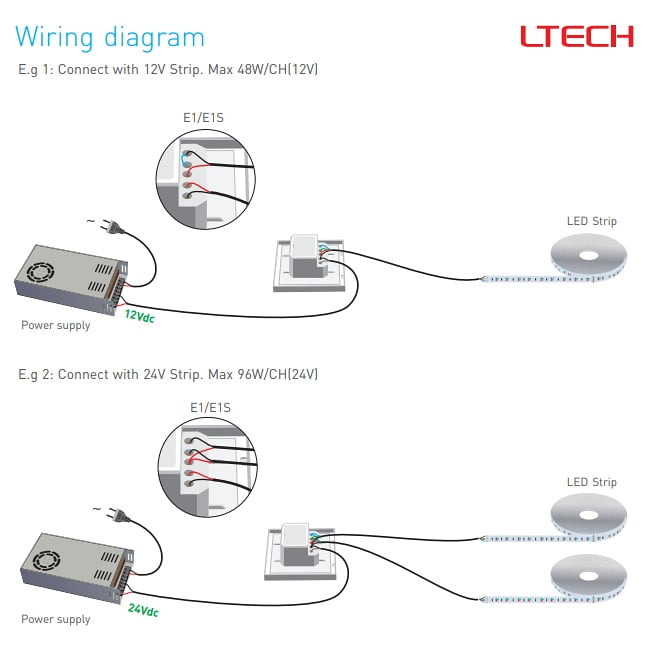

12-24V white or single colour LED strip and a suitable standard low voltage LED driver wire directly into the back of this dimmer.

£54.12
£45.10excluding VAT

SKU: E1 Categories: , ,

Specification

Input voltage DC12V-24V
Max Output Power 96W/192W at 12V/24V
Gray scale level 4096
Working temperature -20C – 60C
Dimensions L86xW86xD36mm
Fixing Screw Centres 60mm
Warranty 5 Years

Download Data Sheet

Description

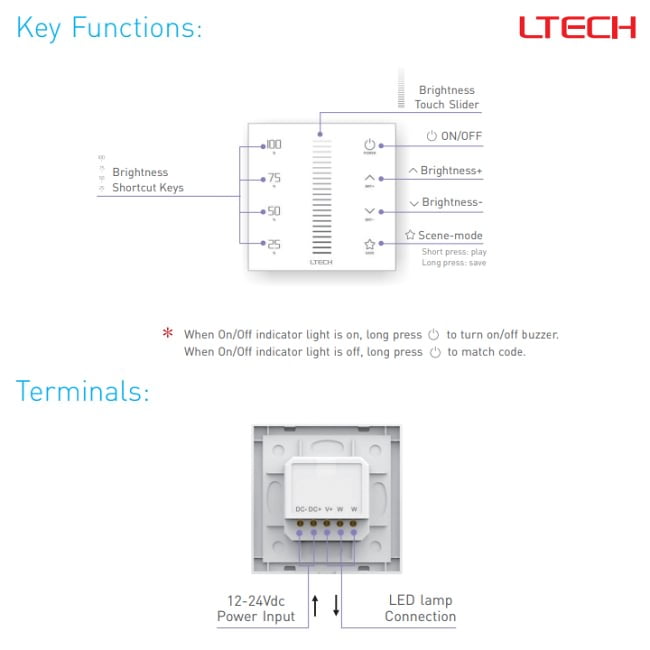

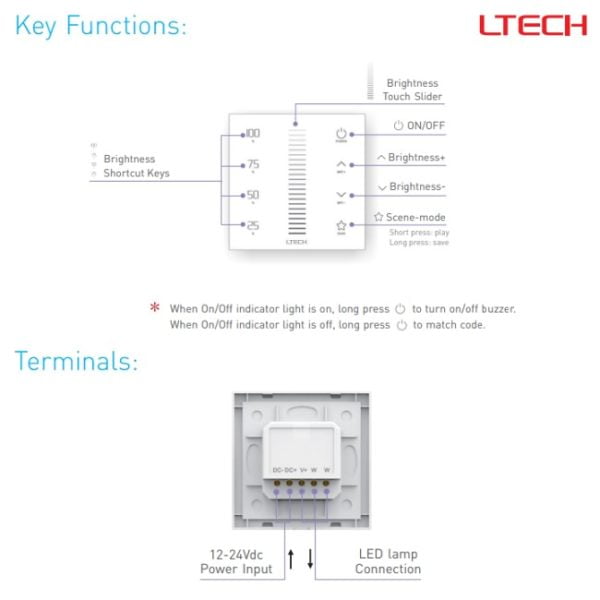

Key product features

  • Power button
  • Graduated dimming bar for quick dimming selection
  • Up and down dimming buttons
  • Scene save button enables the saving and recall of a previous light level
  • Each touch is confirmed with a quiet musical chord and LED indicator light.
  • Pioneered T-PWM dimming technology+ 4096 gray scale gives a perfectly smooth dimming performance.
  • High accuracy touch sensors with IC+special post-processing gives precise touch control.
  • Suitable for 12V or 24V DC circuits.
  • Same size as a standard UK light switch
  • Sleek design with high grade tempered glass front panel.

Additional information

Weight 0.25 kg

1 review for Wired Touch Panel LED Strip Dimmer, 12V – 24V

  1. Paul Tompson –

    Technically skilled guidance given rspectfully………………..

Only logged in customers who have purchased this product may leave a review.

More Information

Suggested matching items…

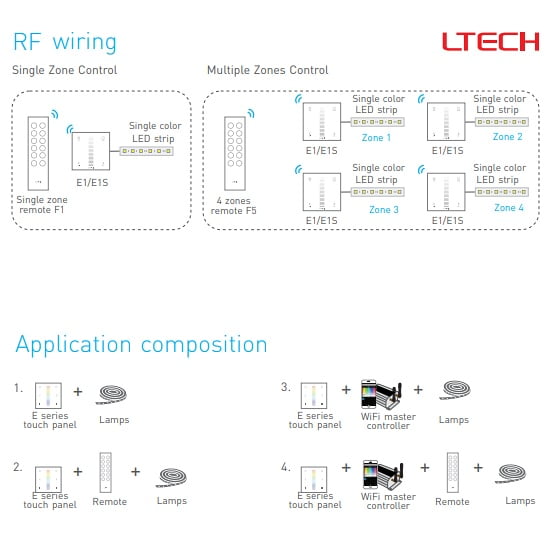

WiFi Control: If you wish to control this switch via an app on a smart phone or tablet, purchase a ‘WiFi-106’ controller.

Remote Control: An ‘F1’ remote control could be purchased allowing remote operation of this switch. Alternately an ‘F5’ remote control could control multiple switches up to a maximum of 4 individual zones.

N.B When using the WiFi or remote control options, a plastic back box must be used when installing this switch. Metal back boxes shield the wireless signal so are not suitable.
