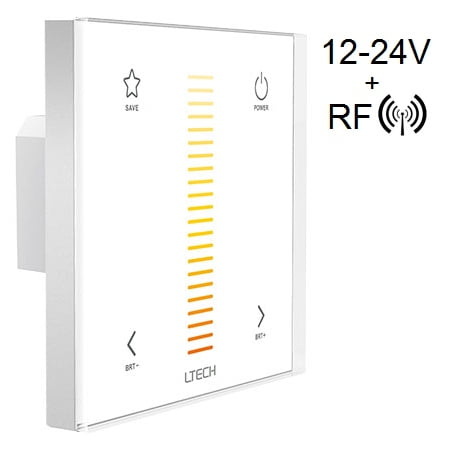

Wired Touch Panel CCT Controller and Dimmer, 12V – 24V

Switch, Dim and CCT adjust a zone of CCT adjustable LED lights directly by low voltage wire

This controller can directly (by wire) adjust and dim CCT adjustable LED Strip rated at 12-24V.

Same size as a standard UK wall switch. Compatible with standard 35mm deep plastic back boxes, back box is not included.

12-24V CCT adjustable LED strip and a suitable standard low voltage LED driver wire directly into the back of this dimmer.

£54.78
£45.65excluding VAT

SKU: E2 Categories: ,

Specification

Input voltage DC12V-24V
Max Output Power 96W/192W at 12V/24V
Gray scale level 4096
Working temperature -20℃ – 55℃
Dimensions L86×W86×D36mm
Fixing Screw Centres 60mm
Warranty 5 Years

Download Data Sheet

Description

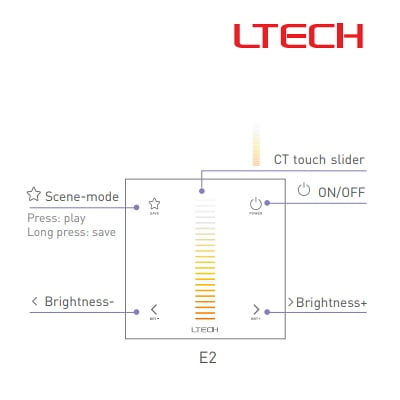

Key product features

  • Power button
  • Touch sensitive graduated CCT bar adjusts lights from Cool to Warm
  • Up and down dimming buttons adjust the brightness
  • Scene save button enables the saving and recall of a desired light setting
  • Each touch is confirmed with a quiet musical chord and LED indicator light.
  • Pioneered T-PWM dimming technology+ 4096 gray scale gives a perfectly smooth dimming performance.
  • High accuracy touch sensors with IC+special post-processing gives precise touch control.
  • Suitable for 12V or 24V DC circuits.
  • Same size as a standard UK light switch
  • Sleek design with high grade tempered glass front panel.

Additional information

Weight 0.2 kg

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

More Information

Suggested matching items…

WiFi Control: If you wish to control this switch via an app on a smart phone or tablet, purchase a ‘WiFi-106’ controller.

N.B When using WiFi, a plastic back box must be used when installing this switch. Metal back boxes shield the wireless signal so are not suitable.
