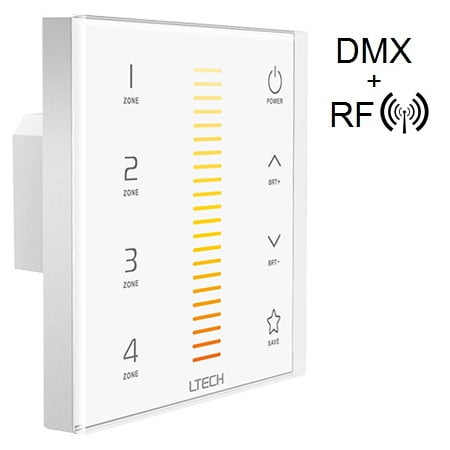

Multi-Zone Wireless/DMX CCT Controller and Dimmer
Switch, Dim and CCT adjust up to 4 zones of CCT adjustable LED lights by DMX wire or Wireless RF signal!
Touch sensitive control panel. Same size as a standard UK wall switch. Compatible with standard 35mm deep plastic back boxes, back box is not included. Metal back boxes shield the wireless signal so are not suitable.
Easy to install, setup and operate. Adjust the brightness and colour temperature of up to 4 lighting zones individually or simultaneously by Radio Frequency and/or by DMX512 wired signal. Wireless or DMX control receivers are required (available to buy below). Multiple control receivers can be added to each lighting zone.

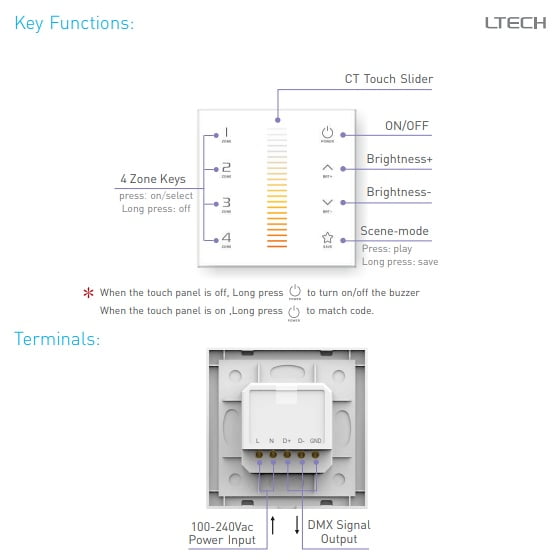

Scene Save feature: turn the lighting zone(s) on, set the brightness level and colour temperature then save the scene by long pressing the ‘star shaped’ button. Recall the scene later with a quick touch of the ‘star’ button.
£68.58
£57.15excluding VAT
More Information
Suggested matching items…

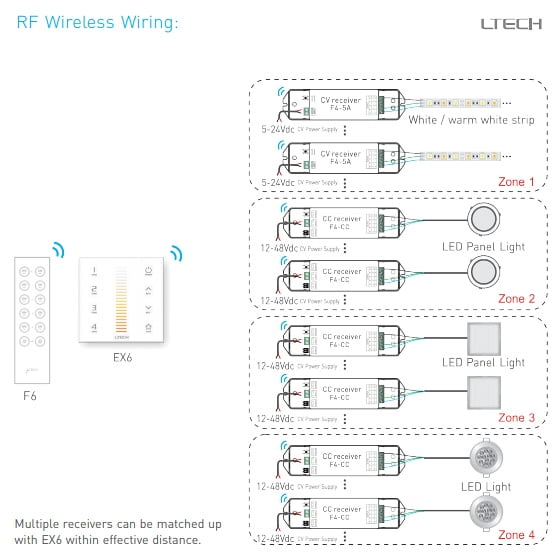

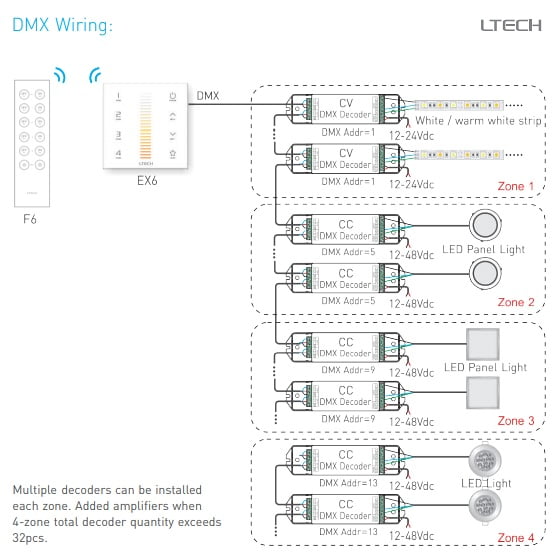

Control Receivers: This control panel transmits a wireless RF and DMX512 control signal. The signal is received by control receivers (available to buy separately, see ‘matching items’ below) which then control the LED lights. Choose either a wired connection using DMX receivers or wireless connection using F4-5A receivers or a mixture of both. Multiple receivers can be added to each of the 4 zones on the touch panel controller.
WiFi Control: If you wish to control this switch via an app on a smart phone or tablet, purchase a ‘WiFi-106’ controller.
Multi-Panel Control: Additional ‘EX6’ touch panels can be added, allowing multiple touch panel control of the lighting.
